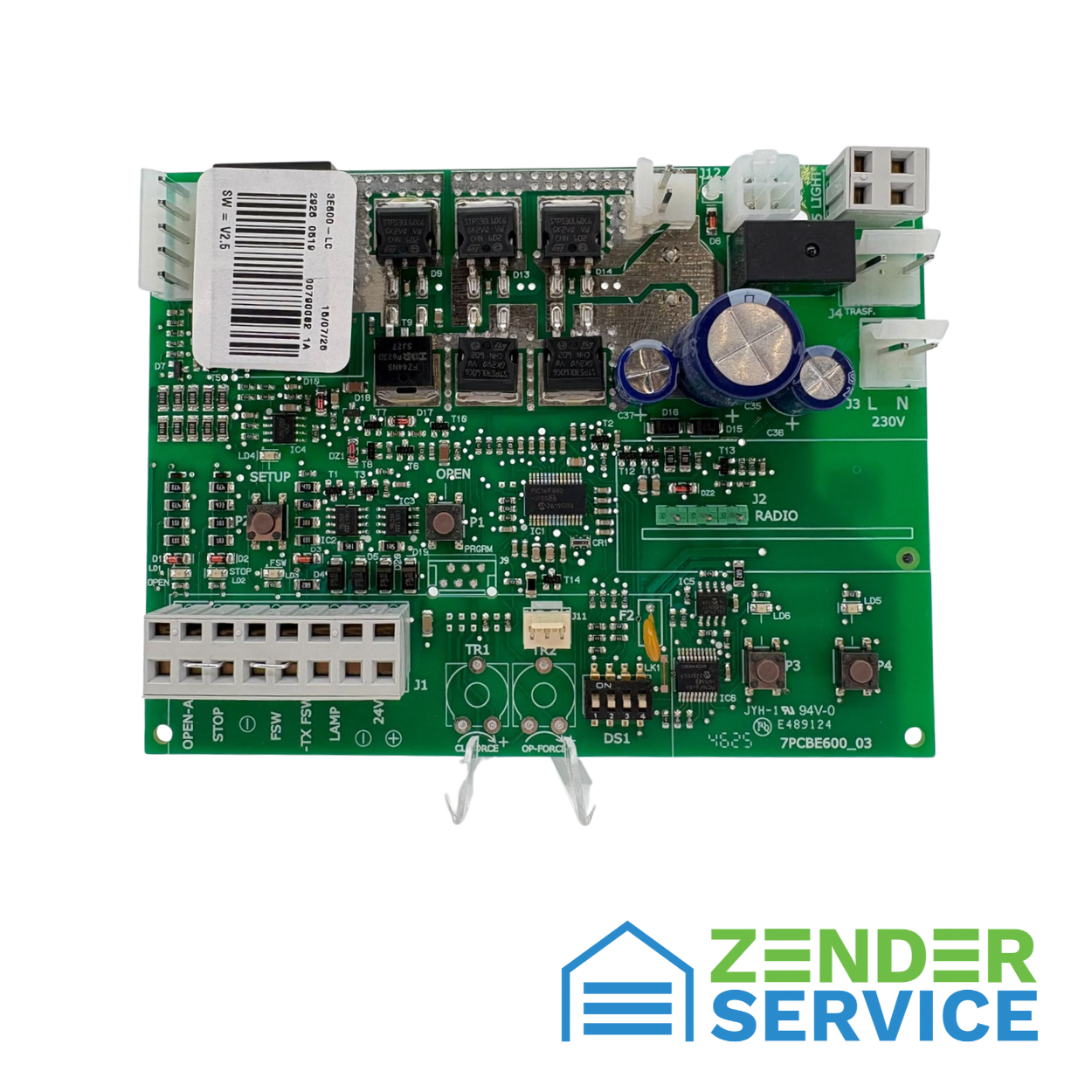

The Faac E600 is the electronic control board for the Faac D600 sectional door operator. The board runs on 220-240 V AC mains voltage and drives the motor at 24 V DC.
The E600 is available under article number 63003655. The same control board was previously coded 2024015.
The control board has inputs for open, stop and safety devices, with fail-safe testing of the safety devices. There is also a 24 V output for a flashing light, and accessories can be powered at 24 V up to a maximum of 200 mA.
Thanks to the integrated OMNIDEC decoding and the connector for an XF 433 or XF 868 plug-in receiver, you can easily operate the door with a remote control.
The E600 works in automatic or semi-automatic mode and adjusts the motor power automatically. The courtesy light stays on for 2 minutes after each movement.
